The rapid advancement of 3D printing in construction is transforming what was once considered a futuristic concept into a tangible reality. Over the last few years, numerous companies have invested significant capital—millions of dollars—into researching and developing 3D printing technologies to revolutionize building construction. These investments reflect the urgent need within the construction industry to address rising material costs and labor shortages while seeking innovative solutions to boost productivity and reduce waste.
As the industry grapples with these challenges, 3D printing emerges as a promising solution, offering potential improvements in efficiency and sustainability. The technology continues to evolve, presenting exciting opportunities for the future of architecture and engineering.
Understanding 3D Printing
3D printing is an additive manufacturing process that fabricates three-dimensional (3D) objects directly from a digital model. Unlike traditional printing on paper, which transfers ink to a flat surface, a 3D printer builds objects layer by layer, starting from the bottom and working its way up. This process allows for the creation of intricate shapes and designs that would be impossible with subtractive manufacturing techniques, which involve cutting away material to form an object. 3D printing minimizes waste compared to subtractive manufacturing since it only adds the necessary material to construct the desired shape.
One of the standout advantages of 3D printing lies in its ability to produce complex geometries and lattice structures. For instance, companies like Branch Technology are pushing the boundaries of architectural design by creating lattice structures that would be extremely challenging to achieve using conventional tools.
Lattice Structure Created by Branch Technology
Source: Branch Technology
Consumer-grade 3D printers typically use thermoplastic filaments, which are melted and extruded layer by layer to form small objects. These printers are ideal for hobbyists and small-scale projects but are limited in size due to the physical constraints of their frames. On the other hand, industrial 3D printers leverage advanced materials such as metals and high-performance plastics, employing precise tools like lasers to ensure accurate bonding of the materials.
Building Homes and Structures with 3D Printing
In recent years, numerous startups and established players in the construction sector have focused on scaling up 3D printing capabilities to construct homes, office buildings, and other large-scale structures. Industry experts predict that 3D printing in construction will lead to substantial cost savings and shorter construction cycles. Contour crafting, a key technique in 3D home printing, uses automated cranes or gantries to rapidly and efficiently build structures with minimal manual intervention. Most construction 3D printers extrude a cement-like material that hardens over time.
The development of a cement-based material suitable for 3D printing presents a significant challenge. It must be fluid enough to be easily pumped and extruded but also strong enough to bear loads immediately after extrusion. Ensuring a robust bond between layers is equally critical.
- Dr. Jennifer Scheydt, Head of Engineering & Innovation at HeidelbergCement Germany
3D-printed homes promise to make housing more accessible and affordable globally. Cement walls with air gaps provide superior insulation compared to traditional wooden frame constructions. Additionally, the cost of producing a 3D-printed home is significantly lower than that of a conventional wooden-framed house.
ICON Builds the First Permitted 3D-Printed Home in the U.S.
In 2018, ICON, a construction technology company based in Austin, Texas, constructed the first legally approved 3D-printed home in the United States. Using ICON's portable Vulcan printer, the 650-square-foot home was printed in under 24 hours for less than $10,000. The simplicity and affordability of the design showcase the potential of 3D printing to transform the housing market.
Traditional construction methods carry inherent inefficiencies and limitations we've accepted for too long. With 3D printing, we gain continuous thermal envelopes, high thermal mass, near-zero waste, speed, a broader design palette, enhanced resilience, and the potential for unprecedented affordability. This isn't just 10% better—it's orders of magnitude better.
- Jason Ballard, Co-founder of ICON
ICON's First 3D-Printed House in Austin, Texas
Source: iconbuild.com
Raw Earth 3D-Printed Mud Homes
In 2021, Mario Cucinella Architects completed a sculptural home in Ravenna, Italy, entirely constructed from 3D-printed raw mud. Known as TECLA, the 645-square-foot home took approximately 200 hours to build. Named by combining "technology" and "clay," TECLA represents a groundbreaking leap in 3D home printing technology. It utilized 100% locally sourced materials, eliminating the need for cement, and employed two synchronized printing arms to avoid collisions during construction.
TECLA's "circular housing" design offers structural support without relying on self-hardening materials like cement. Sourcing materials locally reduces greenhouse gas emissions significantly, making the home both environmentally friendly and cost-effective to build virtually anywhere in the world.
For this project, Mario Cucinella Architects explored housing solutions not only in terms of aesthetics but also in relation to the building's shape, climate, and latitude. The composition of the earth mixture adapts to local climatic conditions, optimizing thermal mass, insulation, and ventilation. TECLA's two continuous elements culminate in two circular skylights symbolizing the 'zenith of light.'
- Mario Cucinella Architects
Source: Mario Cucinella Architects
How a Home Is Printed
- A designer creates a 3D model of the home on a computer. This model can be easily resized and reused for other projects.
- The 3D model is converted into instructions for the 3D printer. These instructions specify the exact coordinates and movements required to build the cement walls.
- Workers prepare the home's foundation, often involving the pouring of a concrete base. While foundations are currently not printed, this may change in the future.

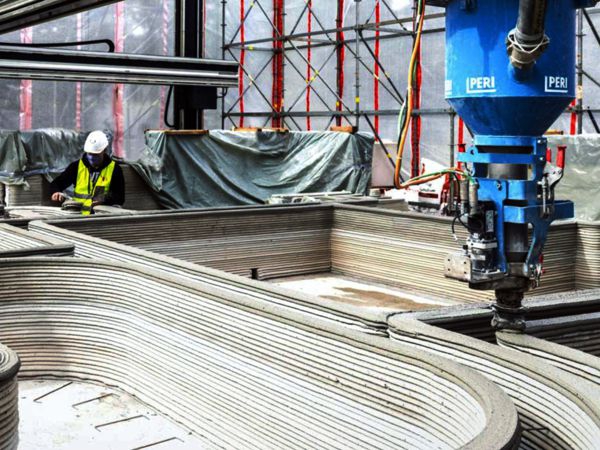

- The 3D home printer is set up at the construction site. The concrete mixture is prepared and loaded into the printer.
- The printer begins constructing the walls. Workers are present to assist if the printer encounters an issue or needs help completing openings for doors and windows.
- Layers are stacked until the walls take shape. The process operates continuously.
- The concrete is allowed to dry and harden.
- Workers return to paint, install the roof, doors, and windows, and complete the interior plumbing and electrical work.
3D-Printed Homes as Humanitarian Solutions
Natural disasters such as hurricanes, earthquakes, and tornadoes devastate thousands of homes annually worldwide, leaving countless families homeless for extended periods. 3D-printed homes could offer an affordable and efficient method to rebuild and house displaced families in disaster zones. Portable 3D printers can be shipped via cargo vessels and assembled at construction sites relatively quickly. Furthermore, most regions possess the basic materials needed to create the cement mixtures required for 3D home printing.
Source: iconbuild.com
Continuous Improvement in 3D Printing Technology
Current 3D-printed homes will continue to evolve as researchers uncover better materials and processes. Challenges remain, such as addressing stress fractures in concrete walls, reducing human intervention during construction, building multi-story structures, and enhancing resilience against natural disasters. Some companies are experimenting with contraction joints (like those seen in sidewalks) to prevent stress fractures. Others are exploring different cement mixtures and wall designs to optimize the extrusion and hardening processes.
Over time, technological advancements will bring breakthroughs in materials and processes, potentially enabling entire communities to be constructed by 3D printers within weeks instead of months. The future holds immense potential for this transformative technology.
